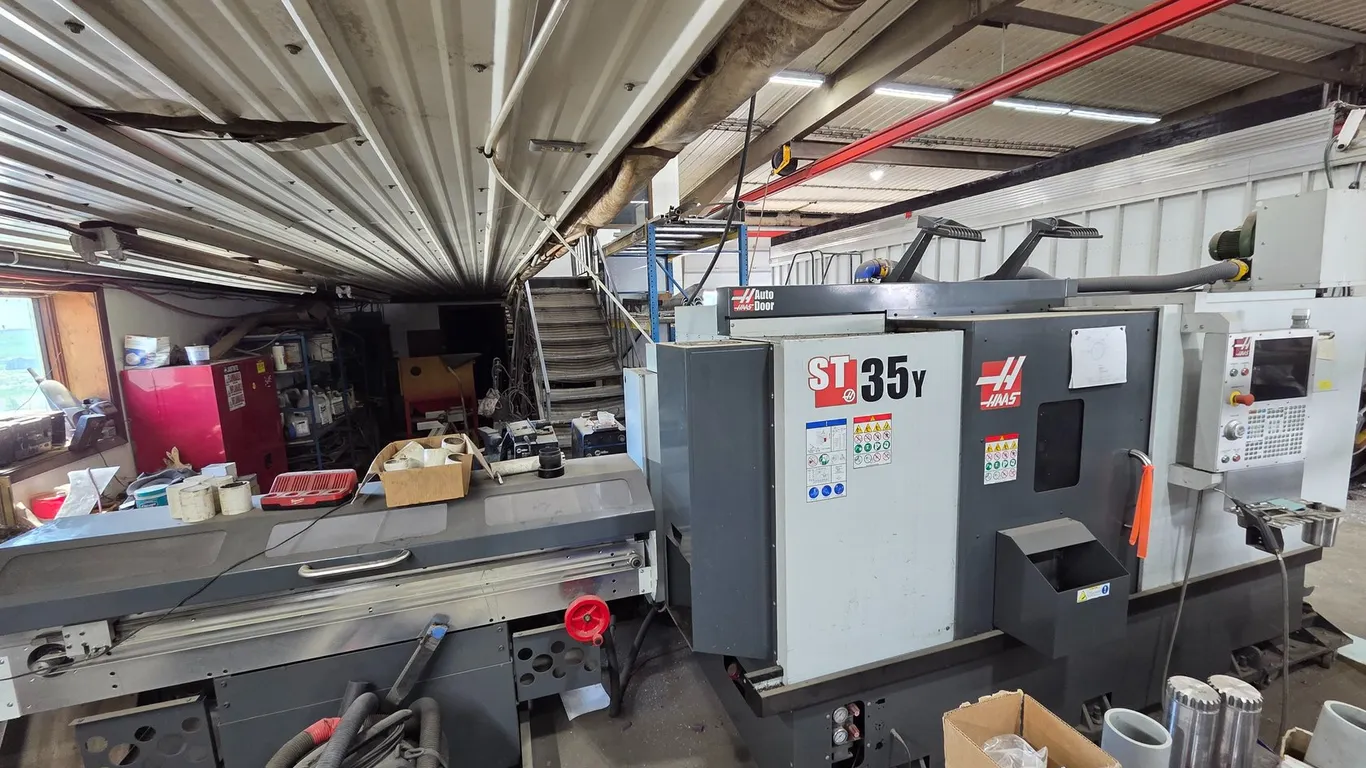

HAAS ST-35Y CNC TURNING CENTER

INCLUDES:

• Y-AXIS MID-SIZE CNC LATHE

• 3,200-RPM SPINDLE, 30 HP, A2-8 SPINDLE NOSE, 4.0” BAR CAPACITY, BELT DRIVE

• 55-GALLON COOLANT TANK WITH ¾ HP PUMP

• DRIVEN TOOLHOLDER KIT FOR THE BMT65 TURRET; INCLUDES (1) 90-DEGREE DRIVEN TOOLHOLDER AND (1) STRAIGHT DRIVEN TOOLHOLDER

• STANDARD BMT65 TOOLHOLDER KIT INCLUDED WITH THE MACHINE; INCLUDES (3) 1” OD TOOLHOLDERS, (1) 1” ID BORING BAR HOLDER, (1) 1.5” ID BORING BAR HOLDER AND (1) 1.5” ID SPLIT BORING BAR HOLDER

• 12” HYDRAULIC CHUCK, A2-8 SPINDLE NOSE

• EARLY POWER-FAILURE DETECTION

• 1GB OF ONBOARD MEMORY FOR PROGRAM STORAGE AND BACKUP

• ETHERNET INTERFACE AND WIFI CONNECTION FOR THE HAAS CONTROL

• HAASCONNECT: REMOTE MONITORING OF YOUR HAAS MACHINE

• HAASDROP WIRELESS FILE TRANSFER

• 4,000-RPM LIVE TOOLING WITH C-AXIS; INCLUDES 12-STATION BMT65 TURRET

• MEDIA DISPLAY M-CODE

• RIGID TAPPING

• SPINDLE ORIENTATION

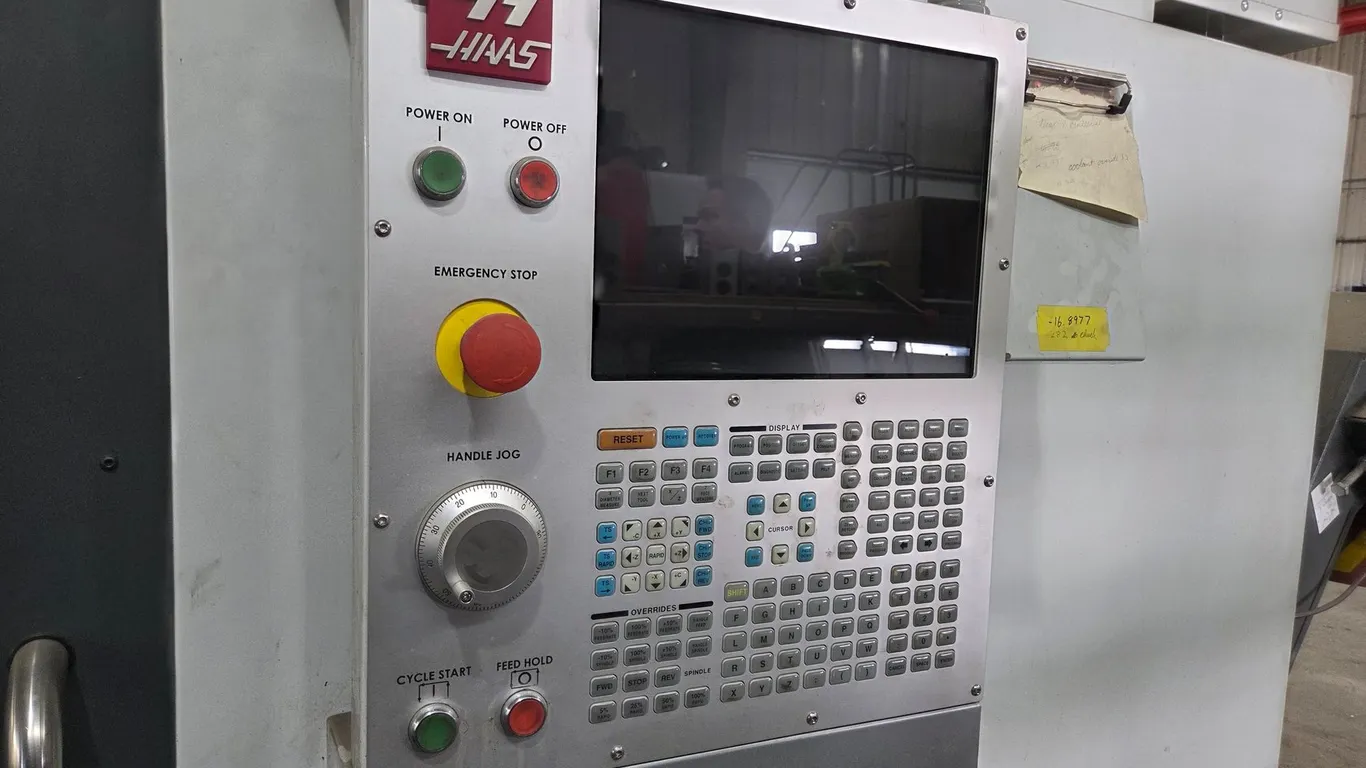

• TOUCH SCREEN INTERFACE FOR THE HAAS CONTROL

• MACHINE INSTALL INCLUDED ADDITIONAL OPTIONS: (HPC) HIGH-PRESSURE COOLANT SYSTEM, 300 PSI (SUB-SPDL-A2-5) 4,100-RPM SUB-SPINDLE, A2-5 SPINDLE NOSE, 6.5” CHUCK (LT-BMT65-24) ½ INDEX TURRET (ATP) AUTOMATIC TOOL PRESETTER (AUTO DOOR-LATHE) AUTO DOOR FOR LATHES (CONVEYOR) BELT-TYPE CHIP CONVEYOR (COOLANT MAINT PACK) COOLANT MAINTENANCE PACKAGE (HIL) HIGH INTENSITY LIGHTING (JET) AUTO JET AIR BLAST (JET SUB-SPINDLE) AUTO JET AIR BLAST SUB SPINDLE
